Tactile Transducer Driver

Intelligent driver for use with our tactile stimulator coils. Timing of tapper pulses is provided by onboard control logic allowing precise repeatability of the tap sequence and duration to multiple tappers. Each channel is equipped with voltage display indicating tap amplitude and may be set manually for rapid experiment development. While supplied with a medical grade power supply this unit can be floated with rechargeable batteries (available separately) and has a fibre optic link to the USB interface allowing a very high level of galvanic isolation, it also features suppression circuitry to reduce induction of artifacts on EEG recording. An API is available to allow you to write experiments in C++, MatLab or EPrime.

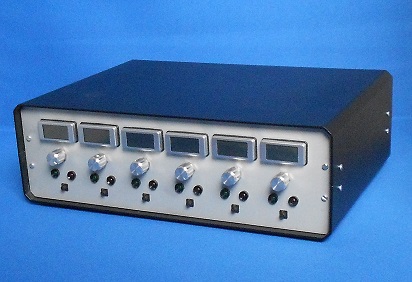

Tapper Controller
Specifications
Interface:USB
Drive voltage: Programmable, 0-10 volts in 10 millivolt increments
On time/Off time:Programmable, 0-255 milliseconds in 1 millisecond increments
Pulse repetition rate:1 to 15 pulses per stimulation
Image for illustrative purposes only, please
refer to product description

Please email support@psyal.co.uk for further technical information.


Pricing

We can supply any number of channels as needed, and in any configuration. Please email sales@psyal.co.uk for pricing to your specific requirements.

Item 2 channel4 channel6 channel8 channel10 channel
TACTDRV-5£1995.00£2770.00£3550.00£4335.00£7895.00



Tactile Stimulators

A tapper coil and magnet assembly for tactile stimulation. This small but powerful tapper device can be mounted on most areas of interest easily using medical tape and can be supplied with a range of connectors and cable lengths. The coil is thermally coupled to a thermistor for sensing the coil temperature for participant safety.

Tapper Coil
Specifications
Overall diameter:13.5mm
Overall length:12mm
Core diameter:4mm
DC Resistance:4 Ohms
Image for illustrative purposes only, please
refer to product description

Please email support@psyal.co.uk for further technical information.


Pricing

We can supply any cable length with any connector you require, guide prices given below are for 3m cable length with no connector attached. Please email sales@psyal.co.uk for pricing to your specific requirements.

Item 1+10+25+
TACT-2£150.00£129.00£119.00
